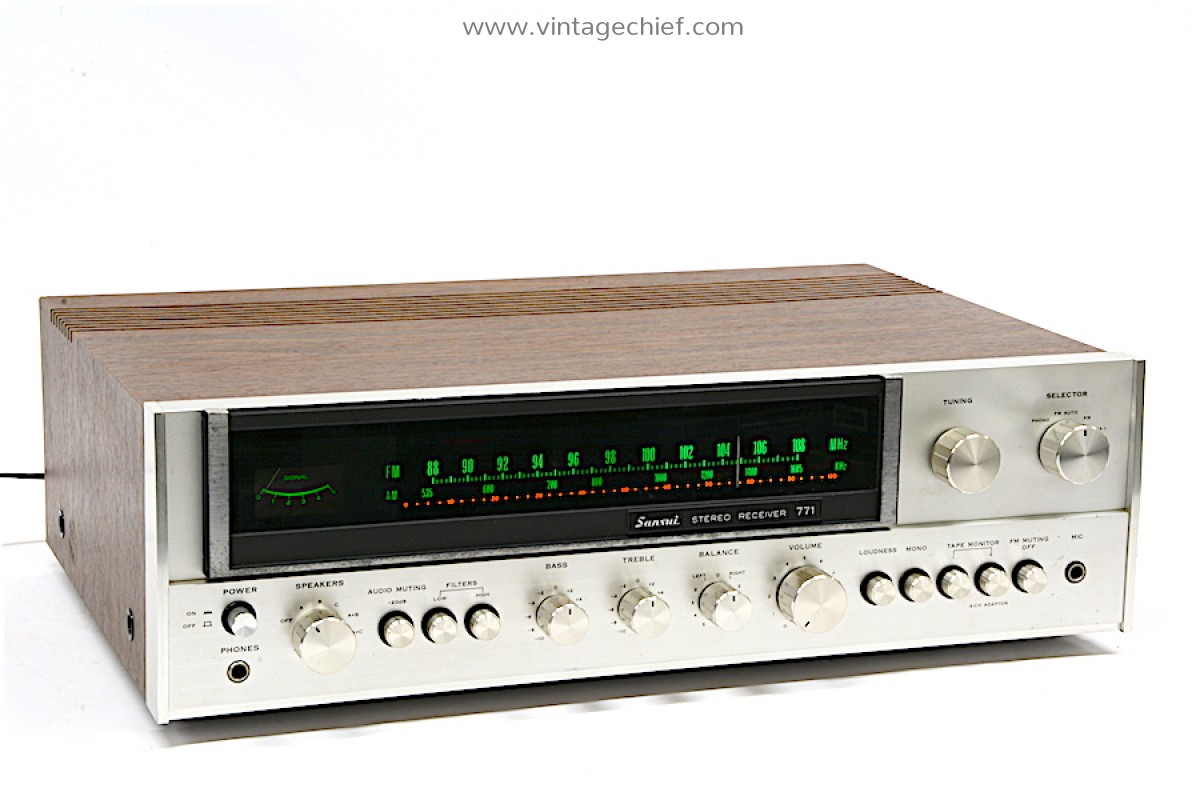

Sansui 771 Receiver

  • € 479.00

Big vintage Sansui 771 FM / AM stereo receiver with beautiful wooden case. The Sansui 771 delivers 32 watts per channel (8 ohm) and features include a phono stage and tone control.

Add to Wish List

Compare this Product

Specifications Sansui 771 receiver:
- Phono, Aux 1, Aux 2, Tape 1 (Rec/Play), Tape 2 (Rec/Play), Speaker System A/B/C, Tone Control, Loudness
- Tuning range: FM, AM
- Power output: 32 watts per channel into 8Ω (stereo)
- Frequency response: 15Hz to 30kHz
- Total harmonic distortion: 0.5%
- Damping factor: 60
- Input sensitivity: 2.5mV (mic), 2.5mV (MM), 100mV (DIN), 100mV (line)
- Signal to noise ratio: 70dB (MM), 80dB (line)
- Channel separation: 45dB (MM), 45dB (line)
- Output: 100mV (line), 30mV (DIN)
- Speaker load impedance: 4Ω to 16Ω
- Semiconductors: 3 x FET, 3 x IC, 49 x transistors, 25 x diodes, 4 x zener diodes
- Dimensions: 480 x 135 x 300 mm
- Weight: 12 kg

Product:
Serviced vintage Sansui 771 FM / AM stereo receiver with beautiful wooden case.

The Sansui 771 is a big receiver (48 cm width) that delivers 32 watts per channel (8 ohm) and features include tone control and a phono stage.

Condition:
Technical condition: 10 / 10
Cosmetic condition: 8 / 10

Electric power requirements:
Input voltage: AC 100 / 117 / 220 / 240 V
Input frequency: 50 / 60 Hz
