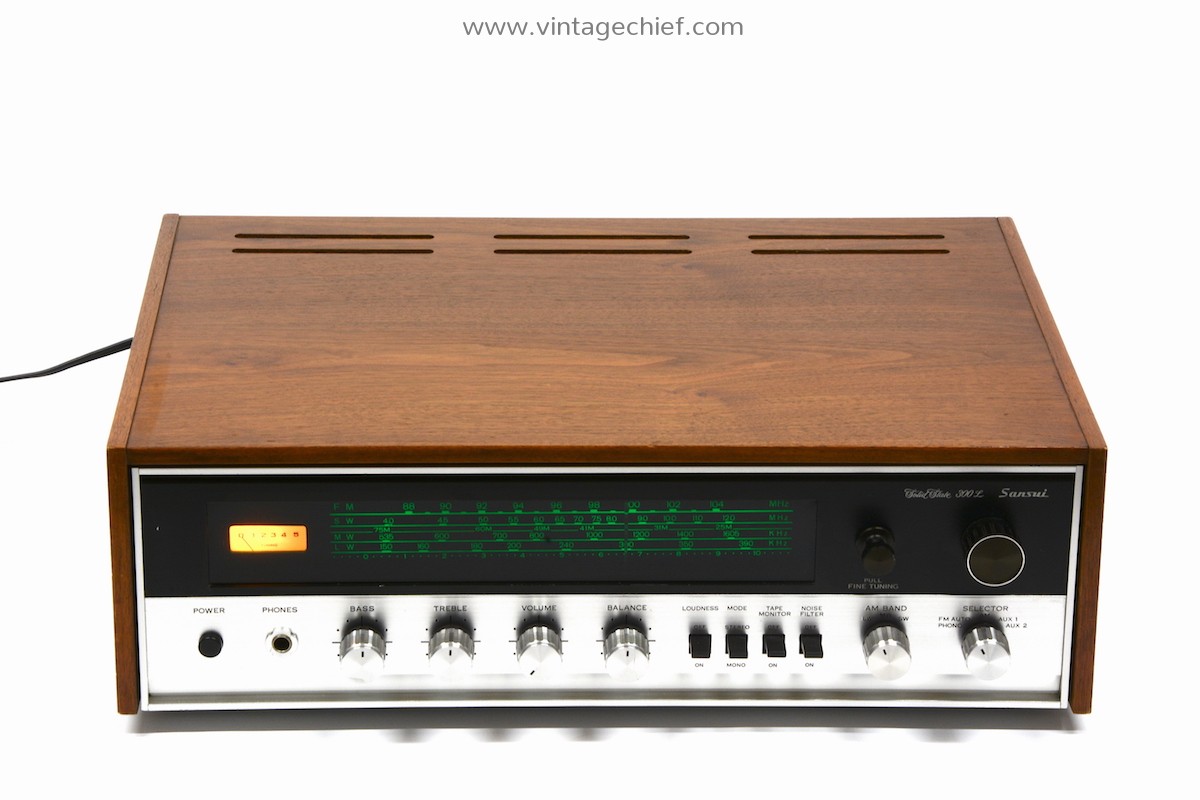

Sansui Solid State 300L Receiver

  • € 449.00

Serviced vintage Sansui Solid State 300L FM / AM stereo receiver (1970) with beautiful wooden case. The Sansui Solid State 300L receiver delivers 14 watts per channel and features include tone control, fine tuning and a phono input.

Add to Wish List

Compare this Product

Specifications Sansui Solid State 300L receiver:
- Phono, Aux 1, Aux 2, Tape (Rec / Mon), Tone Control, Loudness, Fine Tuning
- Tuning range: FM, AM
- Power output: 14 watts per channel into 8Ω (stereo)
- Frequency response: 25Hz to 30kHz
- Total harmonic distortion: 1%
- Damping factor: 20
- Input sensitivity: 3mV (MM), 180mV (DIN), 180mV (line)
- Signal to noise ratio: 65dB (MM), 70dB (line)
- Channel separation: 40dB (MM), 45dB (line)
- Output: 180mV (line), 30mV (DIN)
- Speaker load impedance: 4Ω to 16Ω
- Semiconductors: 36 x transistors, 1 x FET, 2 x varistors, 1 x thermistor, 18 x diodes, 1 x zener diode
- Dimensions (W x H x D): 40 x 12,1 x 27,9 cm
- Weight: + / - 9.5 kg
- Year: 1970

Product:
Serviced vintage Sansui Solid State 300L FM / AM stereo receiver (1970) with beautiful wooden case.

The Sansui Solid State 300L receiver delivers 14 watts per channel (8 ohm) and features include tone control, fine tuning and a phono input.

Including:
- Wooden case

Condition:
Technical condition: 10 / 10
Cosmetic condition: 8.5 / 10

Electric power requirements:
Input voltage: 220 V
Input frequency: 50 - 60 Hz
