Specifications JVC QL-A5 turntable:
- Drive method: direct drive
- Motor: quartz locked DC servomotor
- Speeds: 33 and 45rpm
- Pitch control: +-6%
- Wow and flutter: 0.025% WRMS
- Signal to noise ratio: more than 75dB
- Platter: 308mm
- Tonearm: tracing hold type
- Effective length: 220mm
- Overhang: 15mm
- Frequency response: 10Hz to 25kHz
- Output: 3mV
- Tracking force: 1.75g (+-0.25g)
- Dimensions (W x H x D): 438 x 131 x 380 mm
- Weight: 6.5 kg


Product:

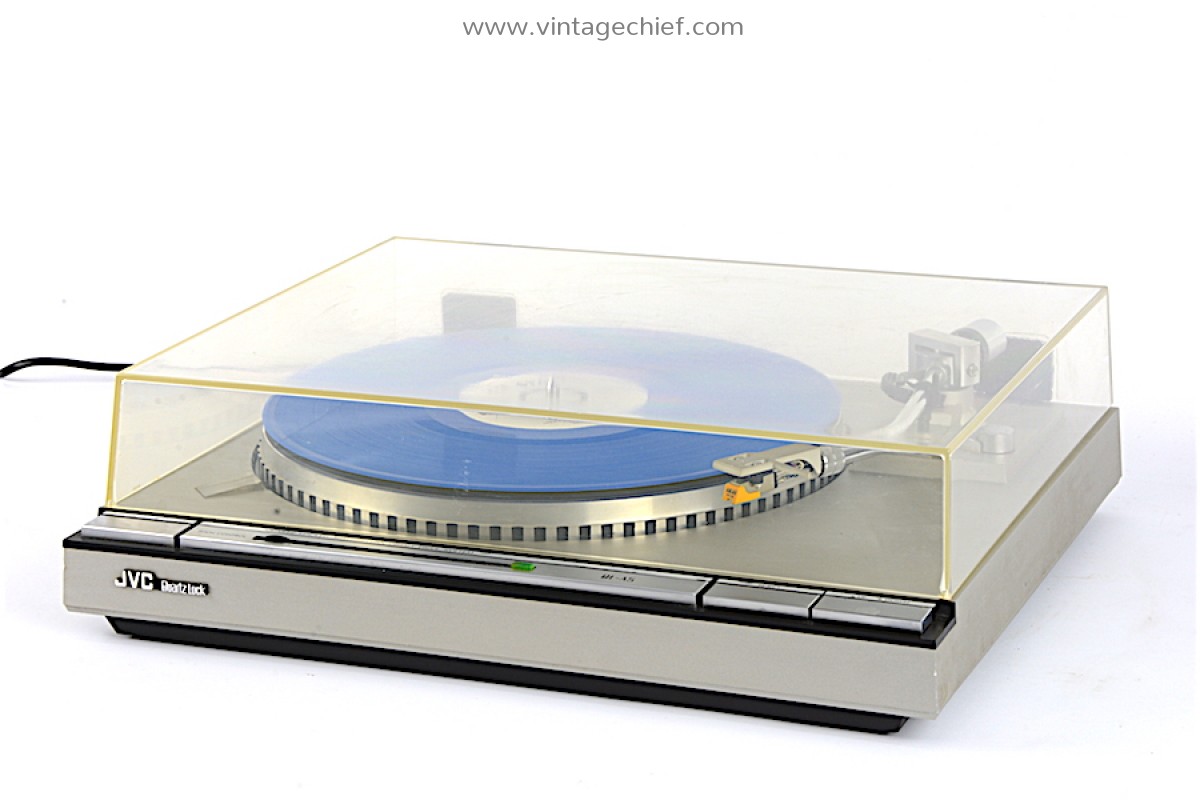

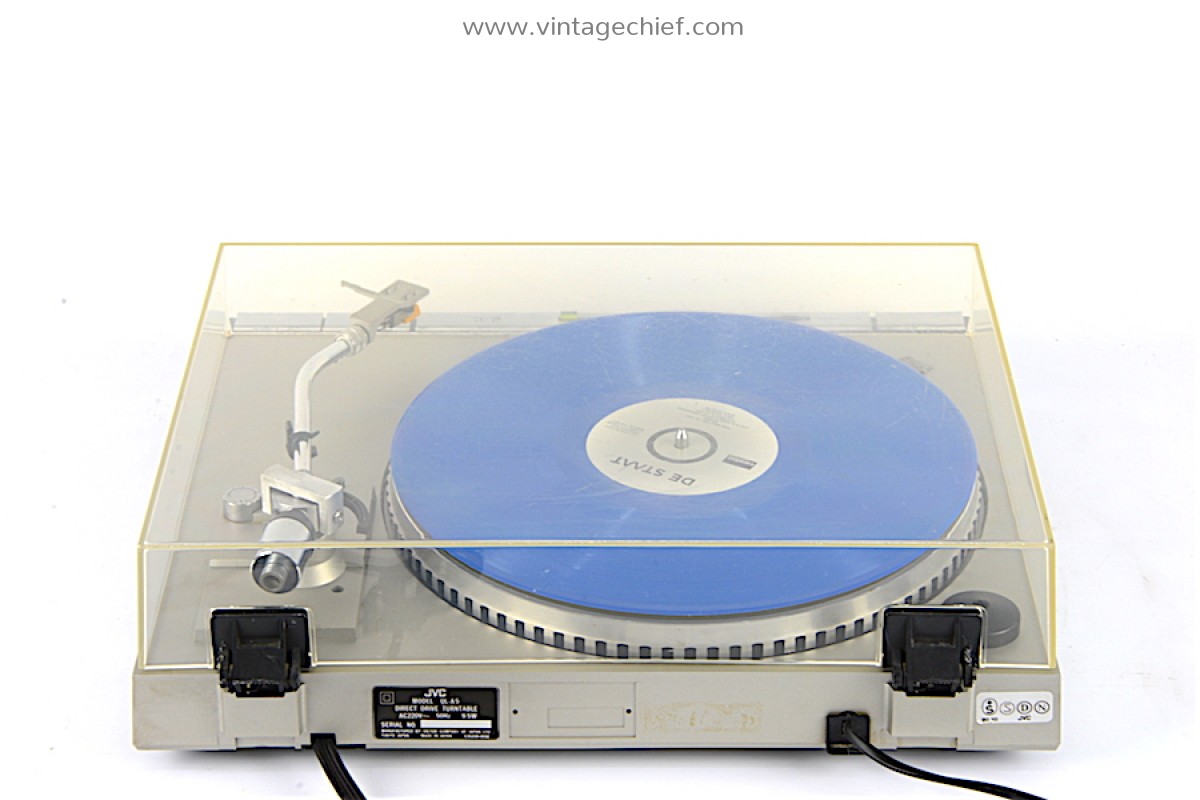

Vintage JVC QL-A5 quartz locked direct drive turntable (1979 - 1980).

The JVC QL-A5 turntable comes with the original dust cover and Akai RS-90 cartridge with stylus.

Including:
- Original JVC QL-A5 dust cover (with some signs of use)
- Akai RS-90 cartridge with stylus

Condition:
Technical condition: 10 / 10
Cosmetic condition: 7.5 / 10

Electric power requirements:
Input voltage: 220 V
Input frequency: 50 Hz
