Specifications Yamaha MDX-9 MiniDisc recorder:
- Inputs: LINE IN (REC): Type: pin jack - Input impedance: greater than 27 k-ohms - Standard input level: 120 mV, DIGITAL IN (COAXIAL): Type: pin jack Input impedance: 75 ohms -Standard input level: 0.5 Vp-p, DIGITAL IN (OPTICAL) 1/2: Type: square optical connector jack
- Outputs: LINE OUT (REC): Type: pin jack - Standard output level: 2.0 ±0.5 Vrms, DIGITAL OUT (OPTICAL): Type: square optical connector jack
- Power Supplies: 230 V, 50 Hz
- Power Consumption: 20 W
- Dimensions (W x H x D): 280 x 82.5 x 362 mm
- Weight: 4 kg

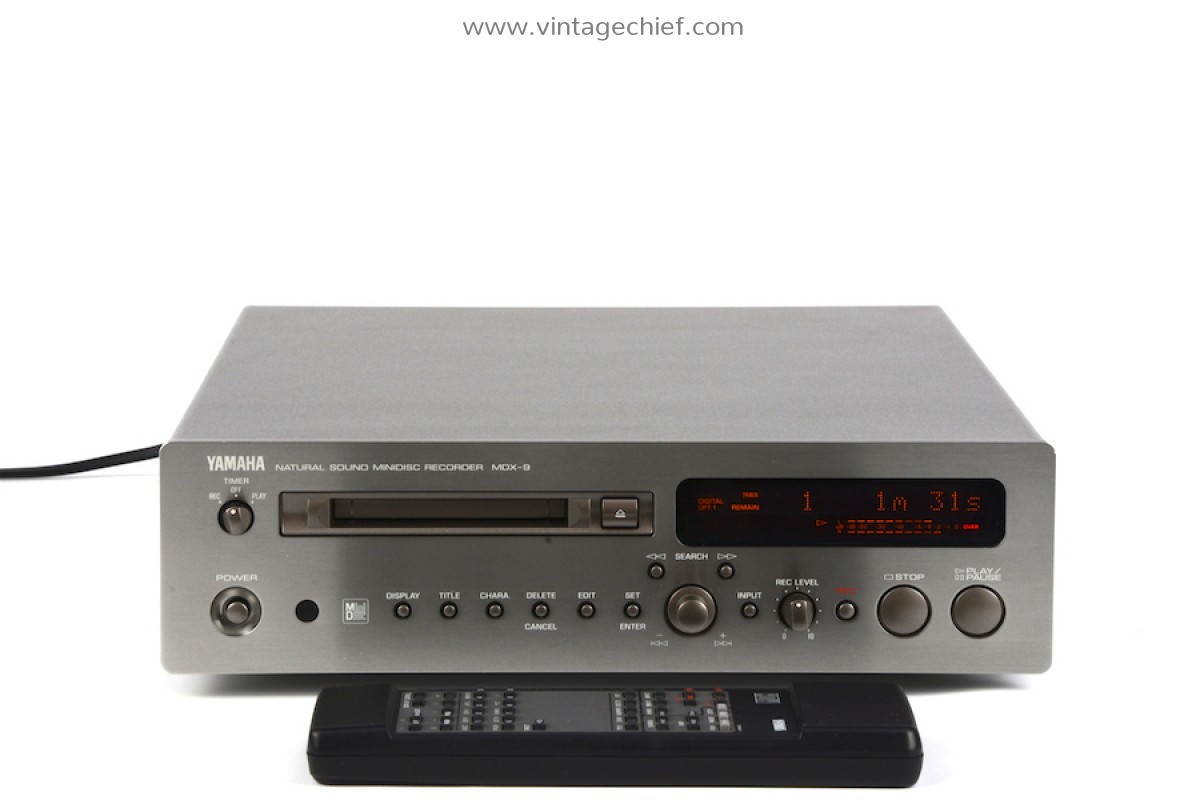

Audiophile and compact Yamaha MDX-9 MiniDisc recorder in the silver finish and including the original Yamaha MDX remote control.
The Yamaha MDX-9 features analog and digital in- and outputs.
- Original Yamaha MDX remote control
- 3 x MiniDisc
Technical condition: 10 / 10
Cosmetic condition: 9 / 10
Electric power requirements:
Input voltage: 230 V
Input frequency: 50 Hz
