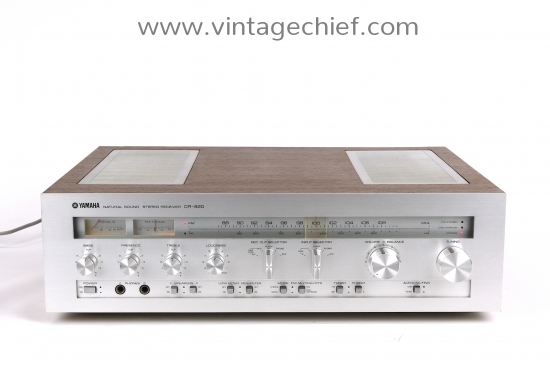

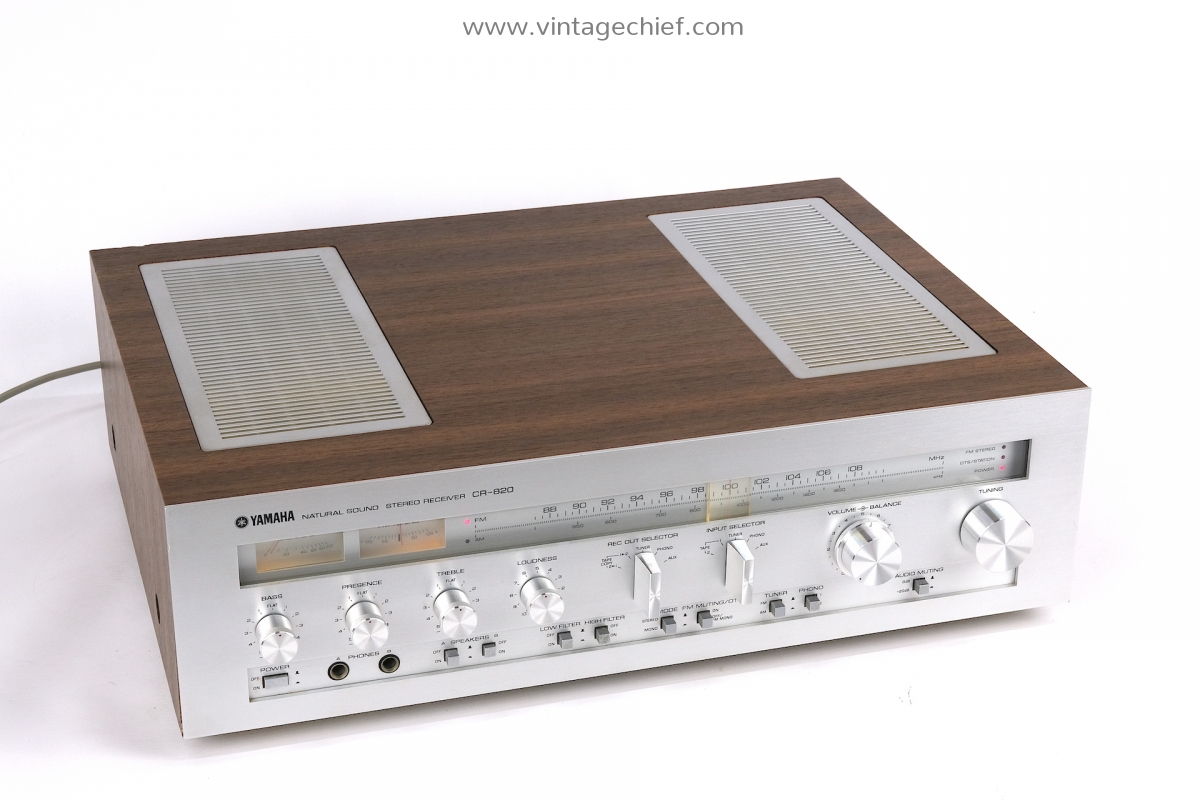

Yamaha CR-820 Receiver
- € 599.00
Serviced audiophile vintage Yamaha CR-820 FM / AM natural sound stereo receiver with beautiful wooden case (1977 - 1980). The Yamaha CR-820 is a big receiver (50.8 cm width) and delivers 55 watts per channel (8 ohm). Features include 2 phono inputs and to
Ex Tax: € 599.00
Availability: Out Of Stock
Brands Yamaha
Product Code: 22479
Tags: Yamaha CR-820 ReceiverYamaha CR-820Yamaha CR820CR-820CR820Yamaha CRYamahaYamaha AudioYamaha StereoVintage YamahaYamaha VintageYamaha CR-820 SpecificationsSpecsSpecifications197719781979198070s70s AudioNatural SoundYamaha Natural SoundSeventiesDesignStyleSilverWooden CaseWoodcaseYamaha ReceiverAudioVintage AudioVintage ReceiverStereo ReceiverVinylPhonoAuxTunerTapeTunerPhonoStereoClassicHiFi
Specifications Yamaha CR-820 receiver:
- Phono 1, Phono 2, Aux, Tape 1 (Rec / Play), Tape 2 (Rec / Play), Speaker A + B, Loudness, Tone Control
- Tuning range: FM, AM
- Power output: 55 watts per channel into 8Ω (stereo)
- Frequency response: 20Hz to 20kHz
- Total harmonic distortion: 0.02%
- Damping factor: 40
- Input sensitivity: 2mV (MM), 120mV (DIN), 120mV (line)
- Signal to noise ratio: 92dB (MM), 97dB (line)
- Output: 120mV (line), 30mV (DIN)
- Speaker load impedance: 4Ω (minimum)
- Semiconductors: 74 x transistors, 4 x IC, 1 x FET, 30 x diodes, 5 x zener diodes, 5 x LED, 4 x ceramic filters
- Dimensions (W x H x D): 508 x 167 x 395 mm
- Weight: 13 kg
Product:
Serviced audiophile vintage Yamaha CR-820 FM / AM natural sound stereo receiver with beautiful wooden case (1977 - 1980).
The Yamaha CR-820 is a big receiver (50.8 cm width) and delivers 55 watts per channel (8 ohm). Features include 2 phono inputs and tone control.
Condition:
Technical condition: 10 / 10
Cosmetic condition: 8.5 / 10
Electric power requirements:
Input voltage: 110 / 120 / 130 / 220 / 230 / 240 V
Input frequency: 50 / 60 Hz
