Sansui AU-101 Amplifier

  • € 239.00

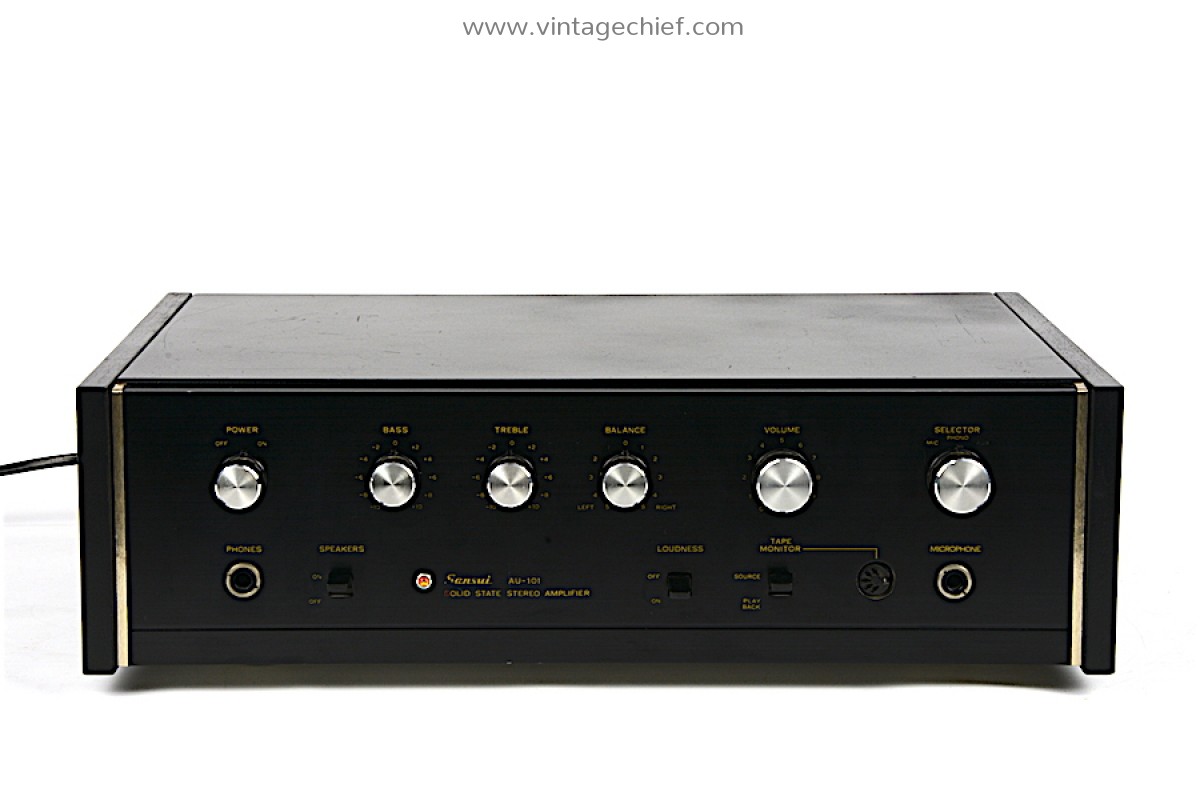

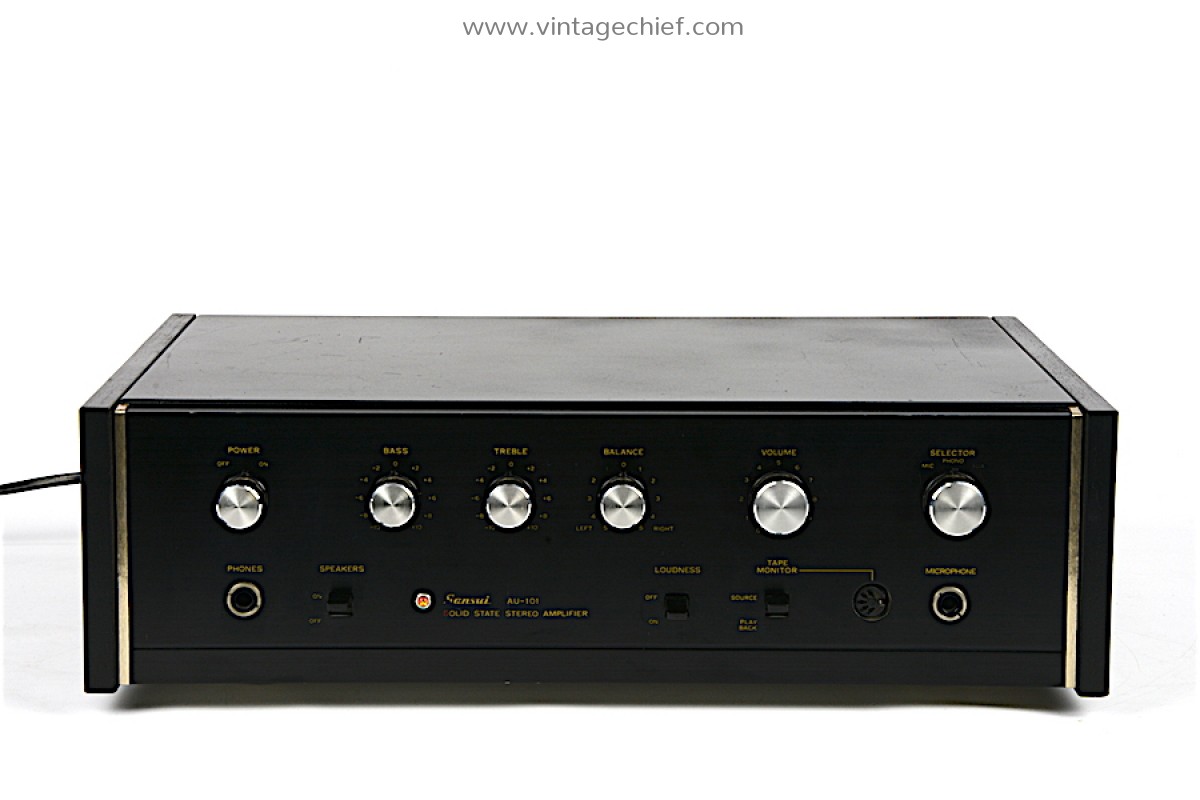

Vintage Sansui AU-101 integrated stereo amplifier (1973 - 1974) with black side panels. The Sansui AU-101 amplifier delivers 15 watts per channel (8 ohm) and features include a phono input and tone control.

Add to Wish List

Compare this Product

Specifications Sansui AU-101 amplifier:
- Phono, Aux, Tape (Rec / Play), Tone Control, Loudness
- Power output: 15 watts per channel into 8 (stereo)
- Frequency response: 20Hz to 60kHz
- Total harmonic distortion: 0.8%
- Input sensitivity: 4mV (mic), 3mV (MM), 200mV (DIN), 200mV (line)
- Signal to noise ratio: 65dB (MM), 75dB (line)
- Channel separation: 45dB (MM), 45dB (line)
- Output: 200mV (line), 30mV (DIN)
- Speaker load impedance: 4 to 16
- Semiconductors: 18 x transistors, 4 x diodes
- Dimensions (W x H x D): 407 x 115 x 278 mm
- Weight: 5.9 kg

Product:
Vintage Sansui AU-101 integrated stereo amplifier (1973 - 1974) with black side panels.

The Sansui AU-101 amplifier delivers 15 watts per channel (8 ohm) and features include a phono input and tone control.

Condition:
Technical condition: 10 / 10
Cosmetic condition: 7 / 10 (side panels are black + new speaker terminals)

Electric power requirements:
Input voltage: 220 V
Input frequency: 50 / 60 Hz
