Specifications Revox A77 MKIII tape recorder:
- Motor: 2 x reel, 1 x capstan
- Reel size: up to 10.5 inch reel
- Equalization: NAB, IEC
- Tape speeds: 3 3⁄4  7 1⁄2 ips
- Wow and flutter: 0.08% (7 1⁄2 ips)
- Frequency response: 30Hz to 20kHz (7 1⁄2 ips)
- Signal to Noise Ratio: 62dB
- Total harmonic distortion: 0.6%
- Crosstalk: 45dB
- Input: 35mV (line), 0.15mV (mic)
- Output: 1.2V (line)
- Output power: 8 watts
- Semiconductors: 54 x transistors, 32 x diodes,
- Dimensions (W x H x D): 359 x 415 x 180 mm
- Weight: + / - 15.5 kg

Product:

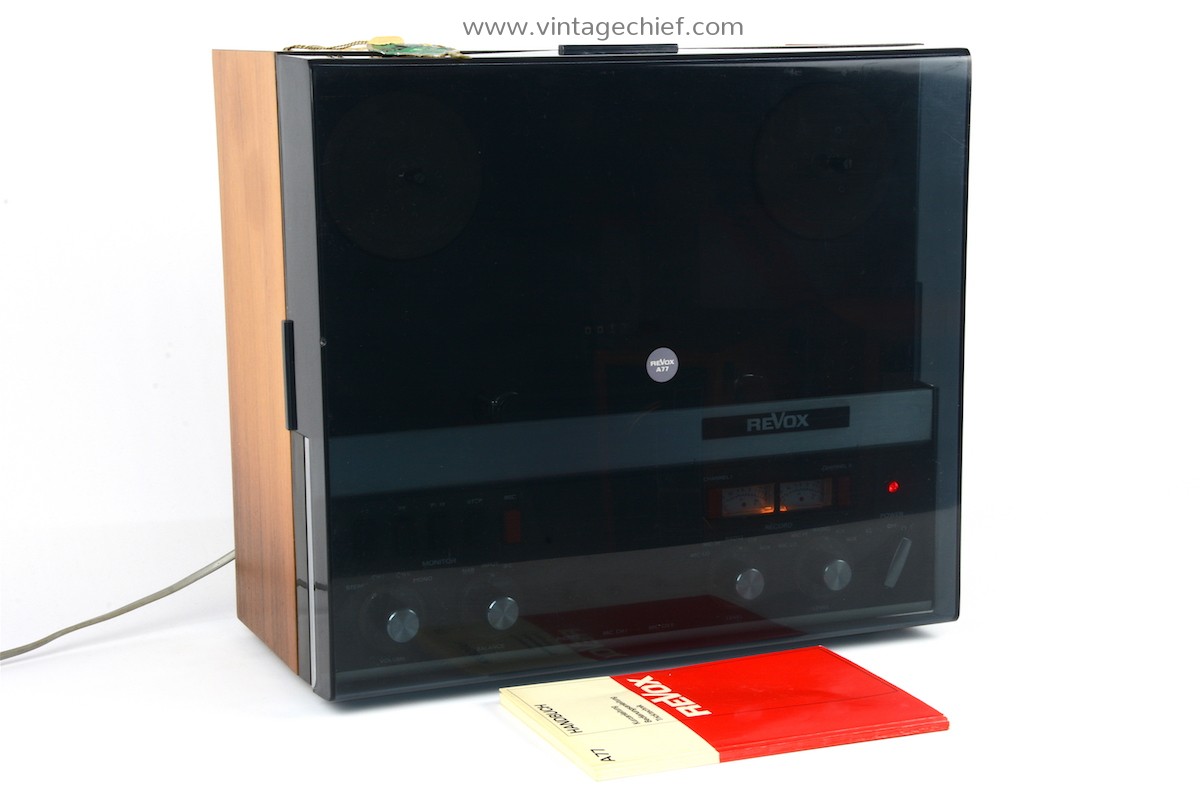

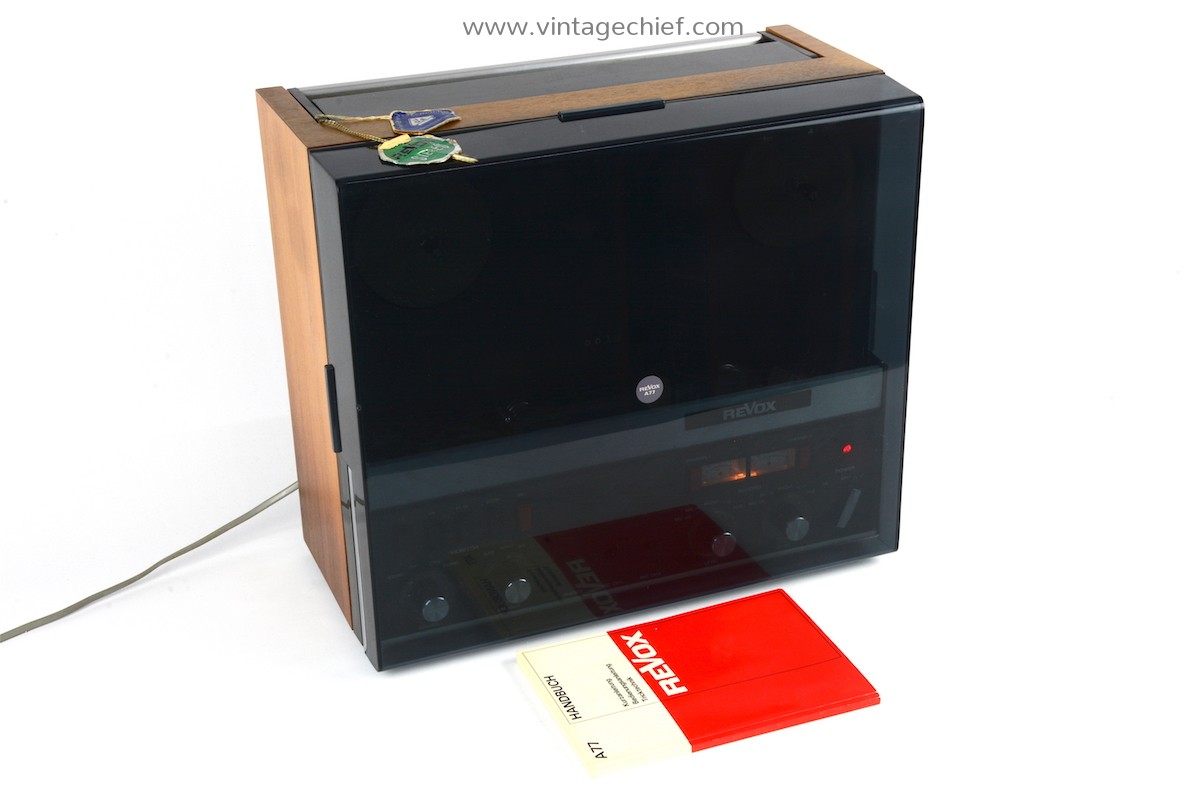

Serviced vintage Revox A77 MKIII 4-track tape recorder including the original dust cover, original manual, Revox remote plug and power cable.

Including:
- Original Revox A77 dust cover
- Original Revox A77 manual
- Revox remote plug
- Power cable

Condition:
Technical condition: 10 / 10
Cosmetic condition: 8 / 10

Electric power requirements:
Input voltage: 110 / 130 / 150 / 220 / 240 / 250 V
Input frequency: 50 - 60 Hz
