Pioneer TX-9500 FM / AM Tuner

€ 0.00

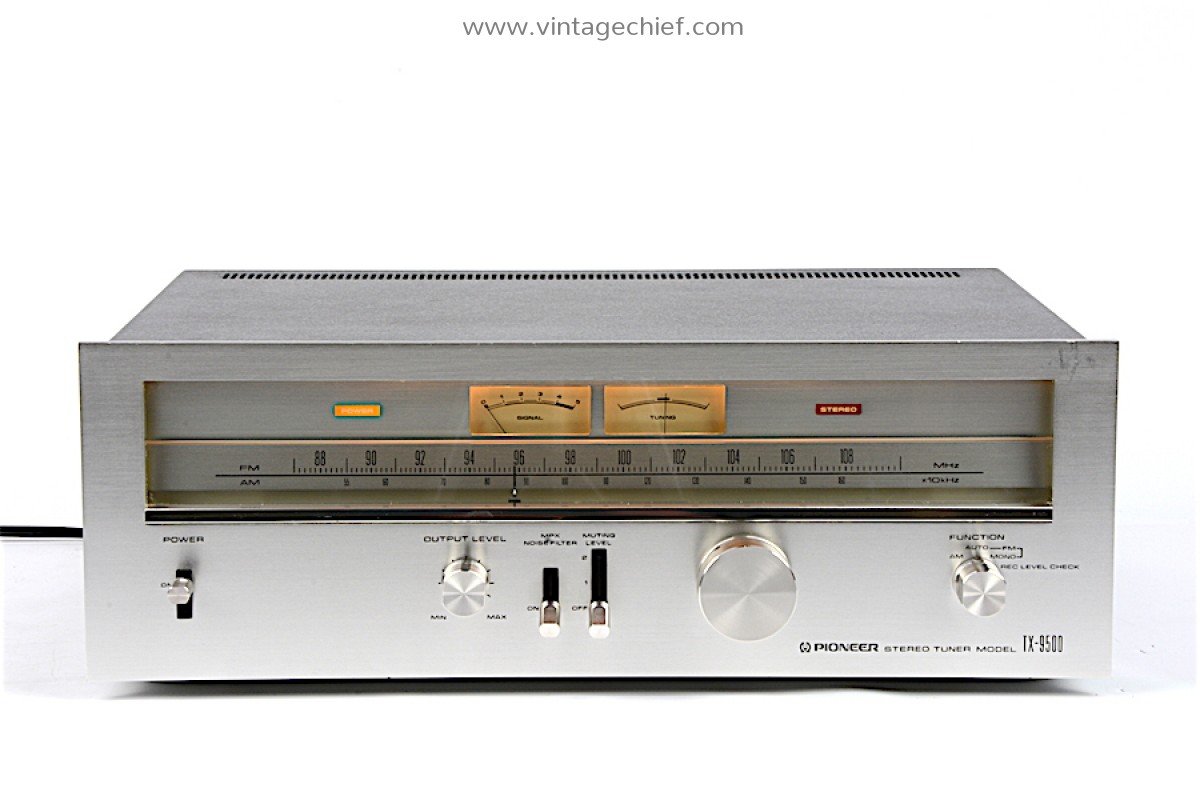

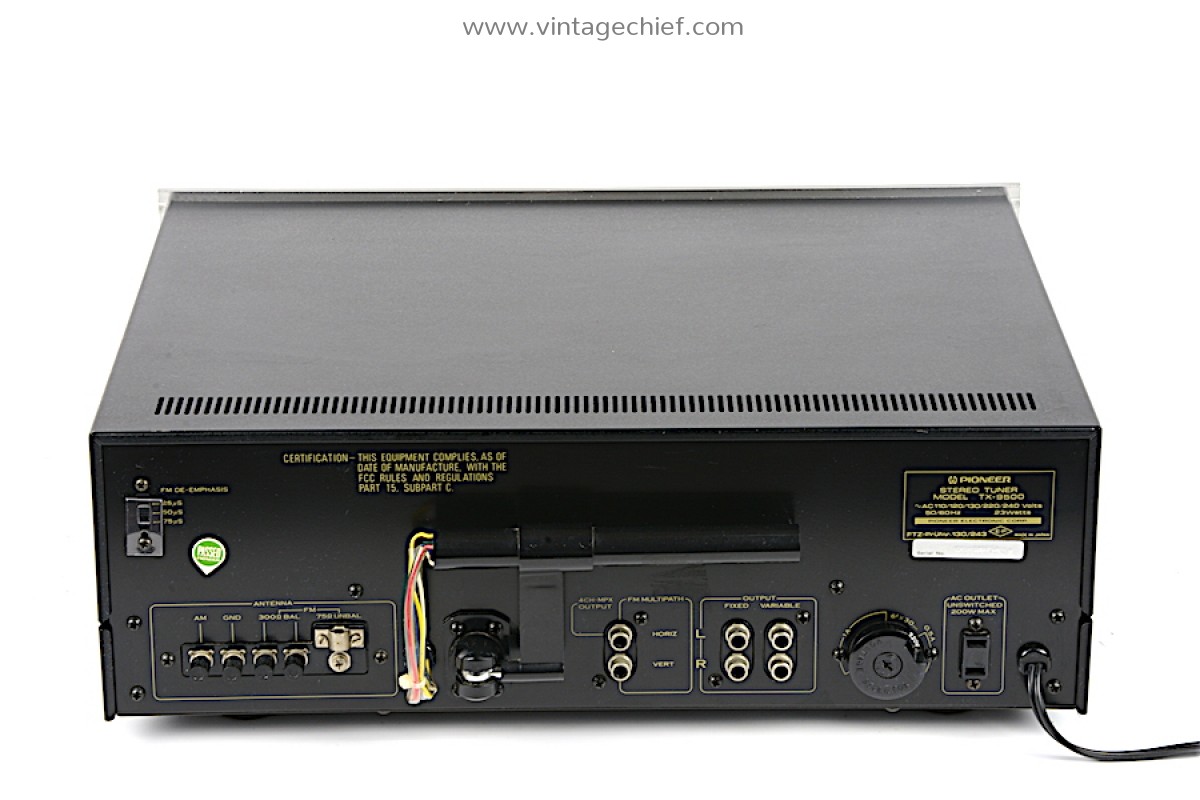

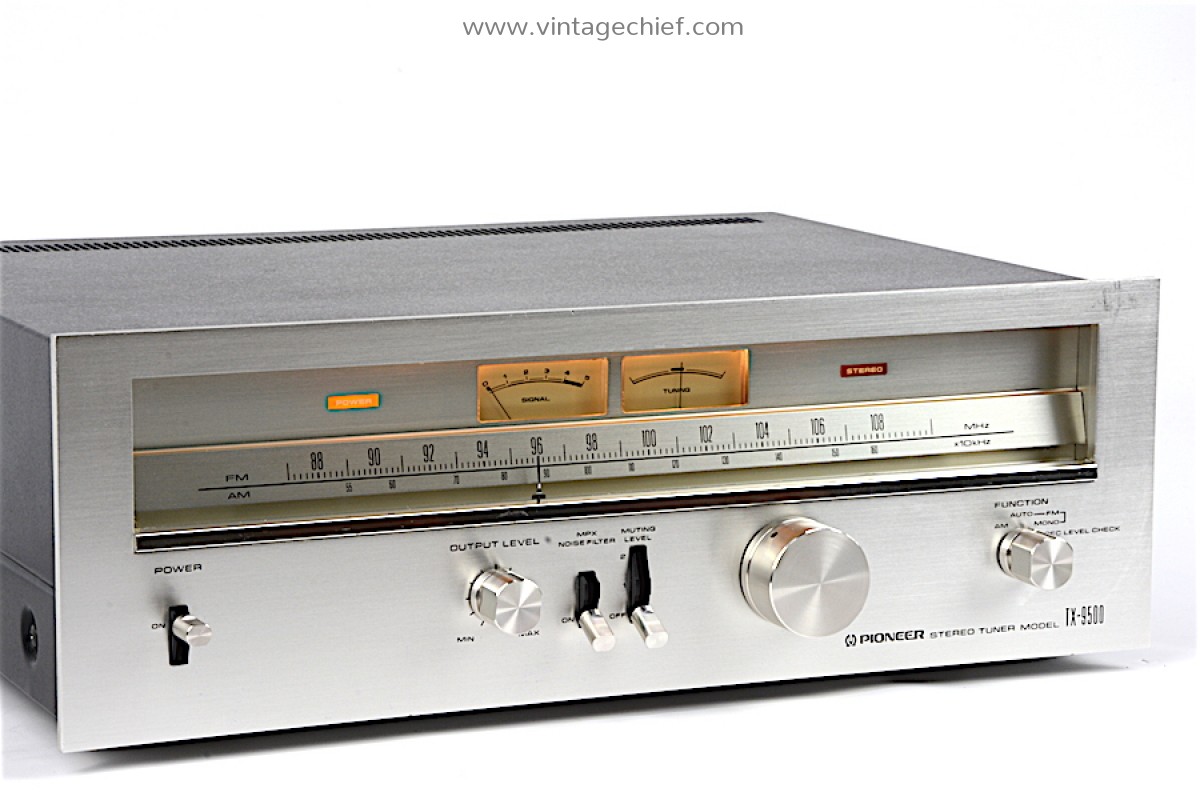

Top of the line vintage Pioneer TX-9500 FM / AM tuner (1975 - 1979). The Pioneer TX-9500 tuner features an illuminated tuner scale and matches the Pioneer SA-9500 integrated stereo amplifier.

Ex Tax: € 0.00

Availability: Out Of Stock

Brands Pioneer

Product Code: 20190

Tags: Pioneer TX-9500 Pioneer TX9500 TX9500 TX-9500 Pioneer TX-9500 Specifications Specs Specifications FM AM Vintage Pioneer Pioneer Audio 70s Seventies Tuner Pioneer Tuner Radio Audio Stereo Vintage Audio Design Classic HiFi

Description
Specifications

Specifications Pioneer TX-9500 tuner:
- Type: Mono/Stereo Tuner
- Tuning Bands: FM, AM
- Tuning Scale: Analogue
- Sensitivity: 1.5uV (FM), 300uV (AM)
- Signal to Noise Ratio: 75dB (FM), 50dB (AM)
- Distortion: 0.5% (FM)
- Selectivity: 85dB (FM), 40dB (AM)
- Frequency response: 20Hz to 15kHz (FM)
- Output: 650mV
- Semiconductors: 3 x FET, 11 x IC, 34 x transistors, 23 x diodes
- Dimensions (W x H x D): 420 x 150 x 365 mm
- Weight: 9.1 kg

Product:
Top of the line vintage Pioneer TX-9500 FM / AM tuner (1975 - 1979).

The Pioneer TX-9500 tuner features an illuminated tuner scale and matches the Pioneer SA-9500 integrated stereo amplifier.

Condition:
Technical condition: 10 / 10
Cosmetic condition: 7 / 10

Electric power requirements:
Input voltage: 220 V
Input frequency: 50 / 60 Hz
