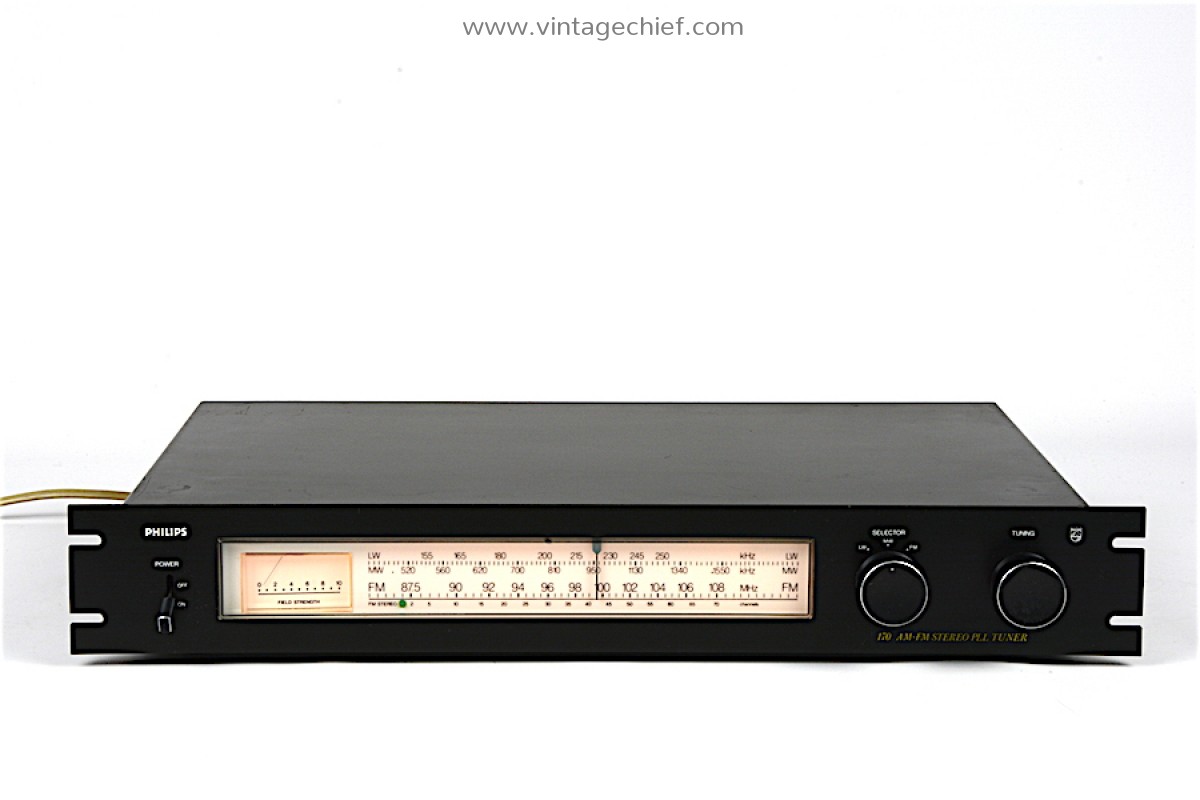

Philips 22AH170 FM / AM Tuner

  • € 119.00

Analog vintage Philips 22AH170 FM / AM tuner with illuminated tuner scale. The Philips 22AH170 tuner matches the Philips 22AH270 and 22AH280 preamplifier, the 22AH370 and 22AH370 power amplifier, the 22AH180 tuner, the 22AH070 switch unit, the 22AH080 tim

Add to Wish List

Compare this Product

Specifications Philips 22AH170 tuner:
- Type: Mono/Stereo Tuner
- Tuning Bands: FM, MW, LW
- FM Tuning Range: 87.5 to 108 MHz
- MW Tuning Range: 520 to 1605 kHz
- LW Tuning Range: 150 to 255 kHz
- Sensitivity: 80uV (FM), 90uV (MW), 90uV (LW
- Signal to Noise Ratio: 46dB (FM), 26dB (MW), 26dB (LW)
- Output: 1100mV (FM), 600mV (MW), 600mV (LW)
- Dimensions (W x H x D): 482 x 78 x 280 mm

Product:
Analog vintage Philips 22AH170 FM / AM tuner with illuminated tuner scale.

The Philips 22AH170 tuner matches the Philips 22AH270 and 22AH280 preamplifier, the 22AH370 and 22AH370 power amplifier, the 22AH180 tuner, the 22AH070 switch unit, the 22AH080 timer and the N2537, N5438 and N5758 cassette deck.

Condition:
Technical condition: 10 / 10
Cosmetic condition: 7 / 10

Electric power requirements:
Input voltage: 220 V
Input frequency: 50 / 60 Hz
