Specifications Luxman T-300U tuner:
- Type: Mono/Stereo Tuner
- Tuning Bands: FM, AM
- Tuning Scale: Analogue
- FM Tuning Range: 88 to 108 MHz
- AM Tuning Range: 525 to 1605 kHz
- Sensitivity: 1.7uV (FM), 250uV (AM)
- Signal to Noise Ratio: 75dB (FM), 48dB (AM)
- Distortion: 0.3% (FM), 0.6% (AM)
- Selectivity: 75dB (FM)
- Frequency response: 20Hz to 15kHz (FM), 40Hz to 5kHz (AM)
- Output: 1700mV (FM), 400mV (AM)
- Dimensions (W x H x D): 485 x 165 x 281 mm
- Weight: 9.3 kg
Vintage Luxman T-300V FM / AM tuner with beautiful wooden case and including the original manual.
The Luxman T-300V tuner (48.5 cm width) features an illuminated tuner scale and matches the Luxman L-308, Luxman L-309, Luxman L-309V, Luxman L-309X integrated amplifiers, the Luxman CL-350 preamplifier and the Luxman M-1600 and M-150 power amplifiers.
- Original Luxman T-300V manual

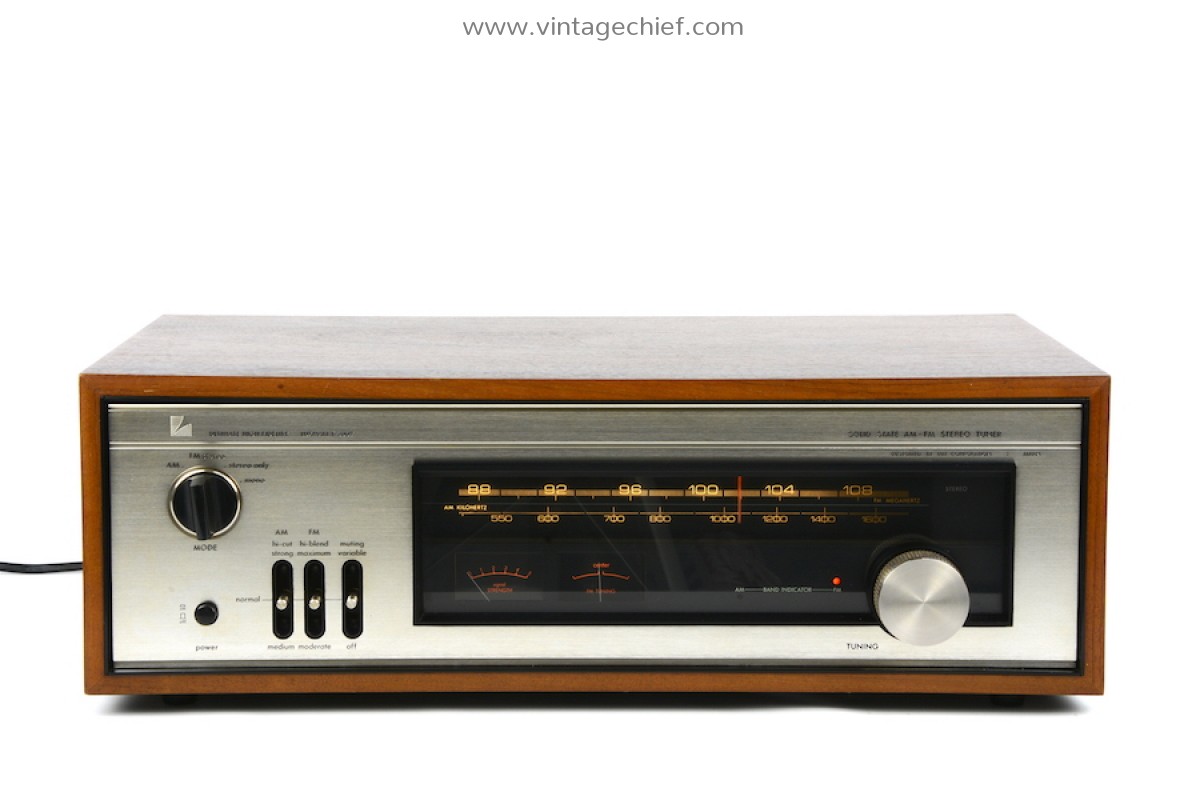

The photos are from an almost similar Luxman T-300U tuner (sold). Photos of the actual Luxman T-300V for sale will follow soon.
Technical condition: 10 / 10
Cosmetic condition: 9 / 10
Electric power requirements:
Input voltage: 220 V
Input frequency: 50 Hz
