JVC VS-5342 Speakers

Posted By: VintageChief

Product:

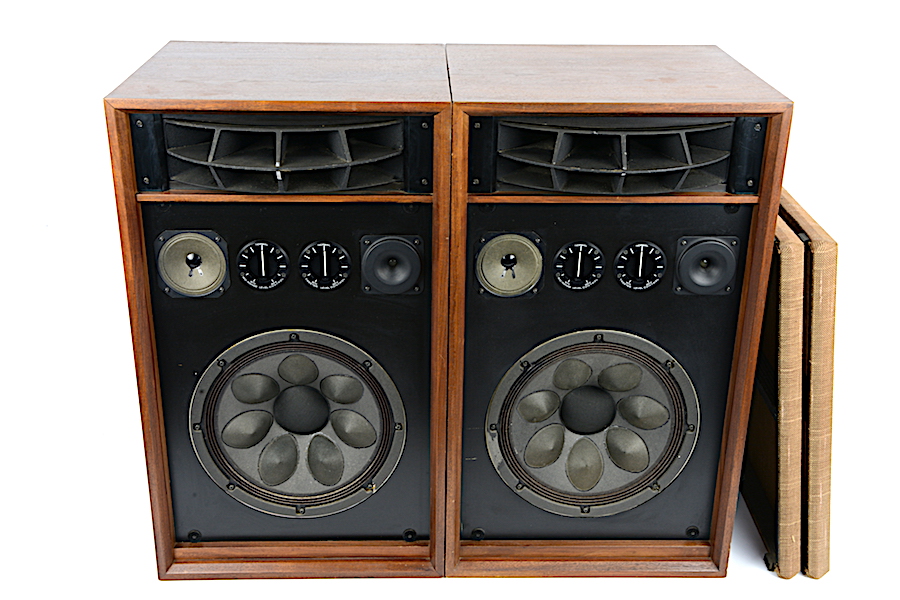

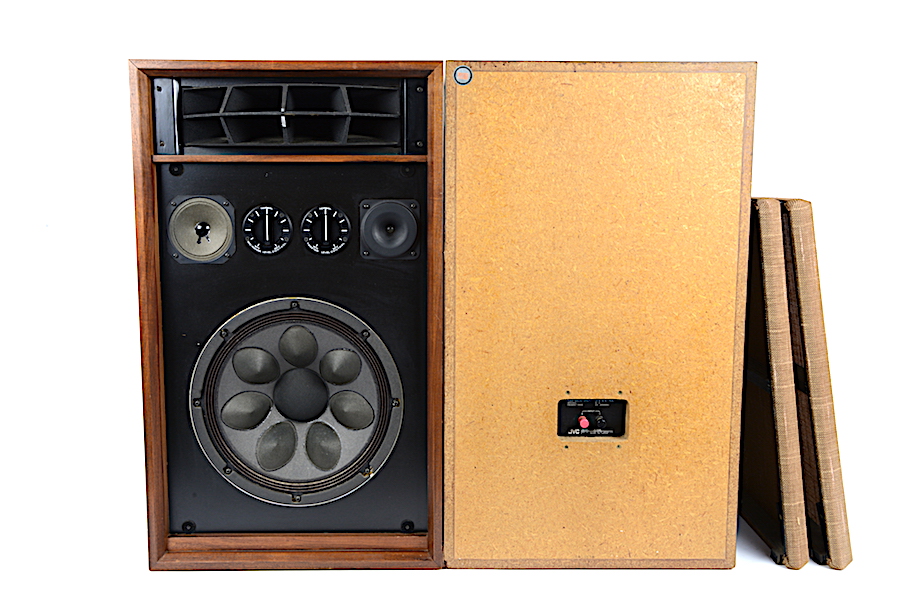

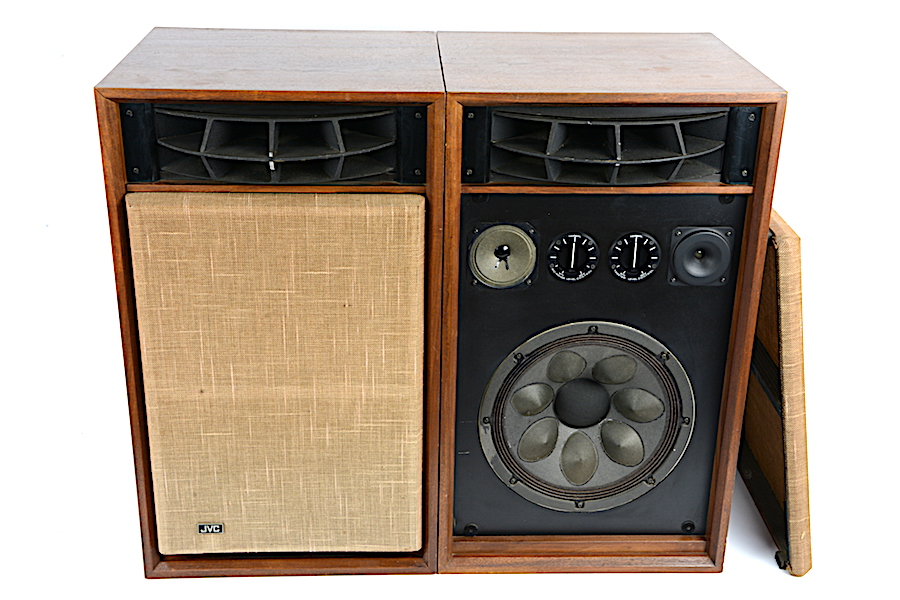

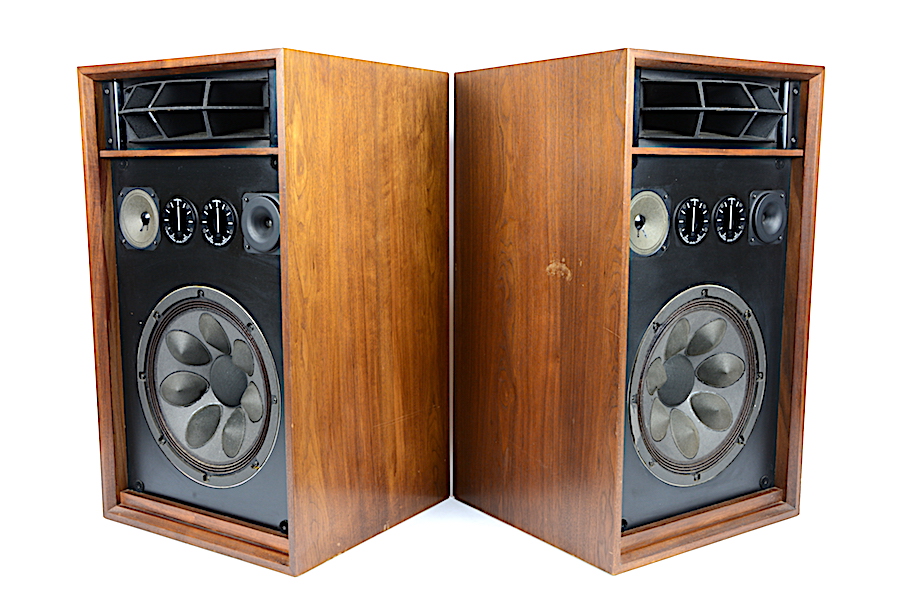

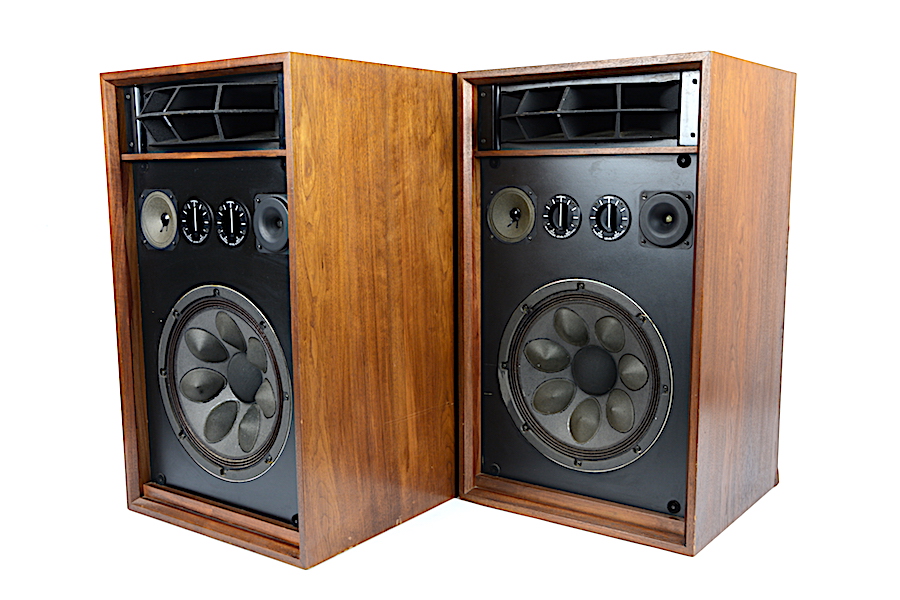

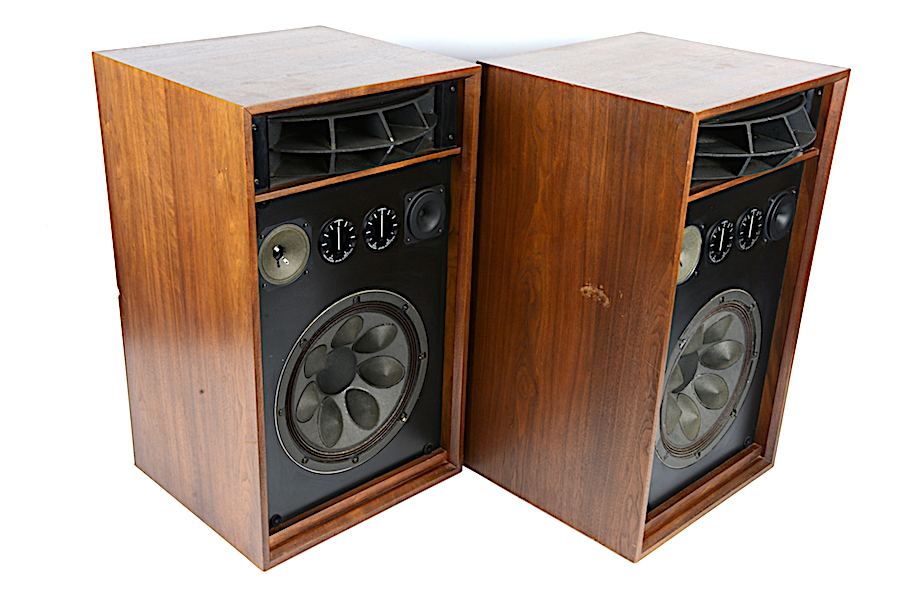

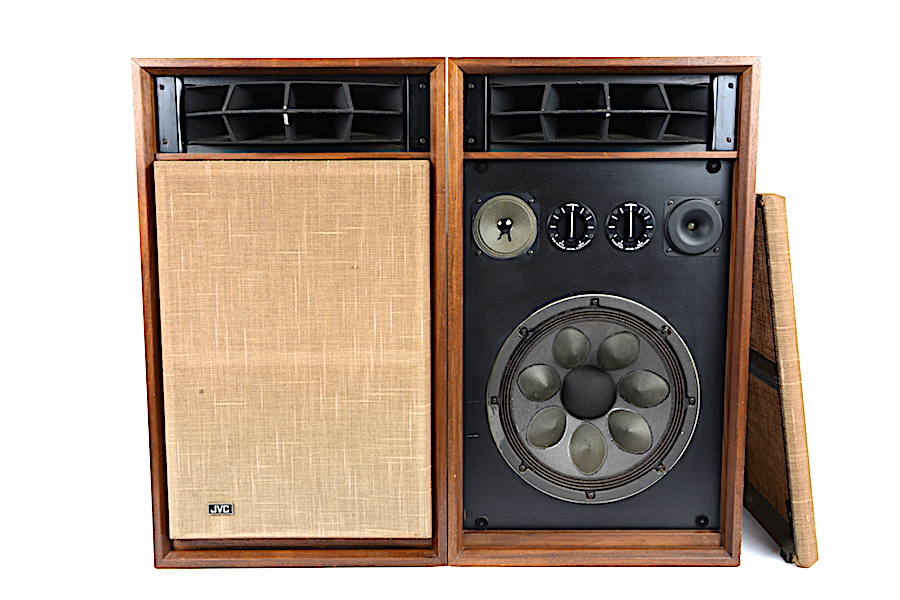

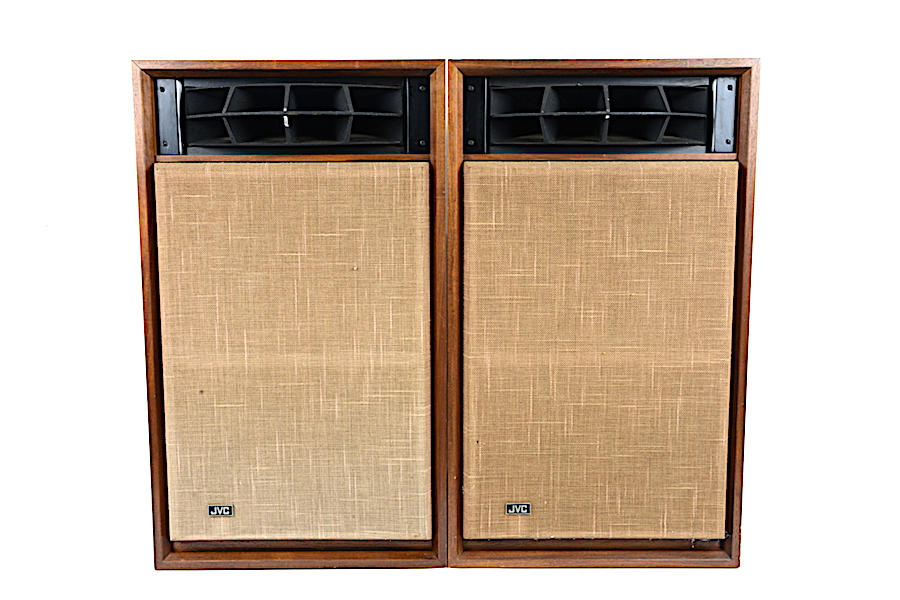

Very rare vintage pair JVC VS-5342 speakers with the original speaker grills.

The JVC VS-5342 (23 kg - 102dB) is a 4-way speaker system with a RCA LS-1 style woofer, a horn speaker for the mid range and 2 tweeters.

Including:
- Original JVC VS-5342 speaker grills

Specifications JVC VS-5342 speakers:
- Type: 4-way 4-speakers Acoustic suspension
- Woofer: 305mm (12") -Resonance: 60Hz
- Mid-range: 290mm (11.5) wide Cellular horn (8 cells; 4W by 2H)
- Tweeters: one 88mm cone and one 50mm horn
- Frequency response: 20-20.000Hz
- Crossover Frequencies: 1500Hz, 7000Hz, 10,000Hz
- Power handling capacity - Peak: 80W
- Power handleding - R.M.S.: 40W
- Minimum required power: 15W rms per channel
- Efficiency (50 cm on axis): 102dB/W
- Impedance: 8
- Finish: Walnut Veneer
- Dimensions (H x W x D): 72.4 x 41.9 x 39 cm
- Weight: 23 kg
